The GHFm serials, from the points of view of both performance and mechanical dimensions, has been expressly designed for use in the civil, agricultural and industrial field. Due to the high yields reached and the possibility of continuous duty, it is recommended to use for irrigation with following and sprinkling water, drawing water from lakes, rivers, wells,etc. The pumps should be installed in enclosed environment, or at least sheltered from inclement weather.

Liquid Type: Clean water

Typology: Surface

Family: Centrifugal

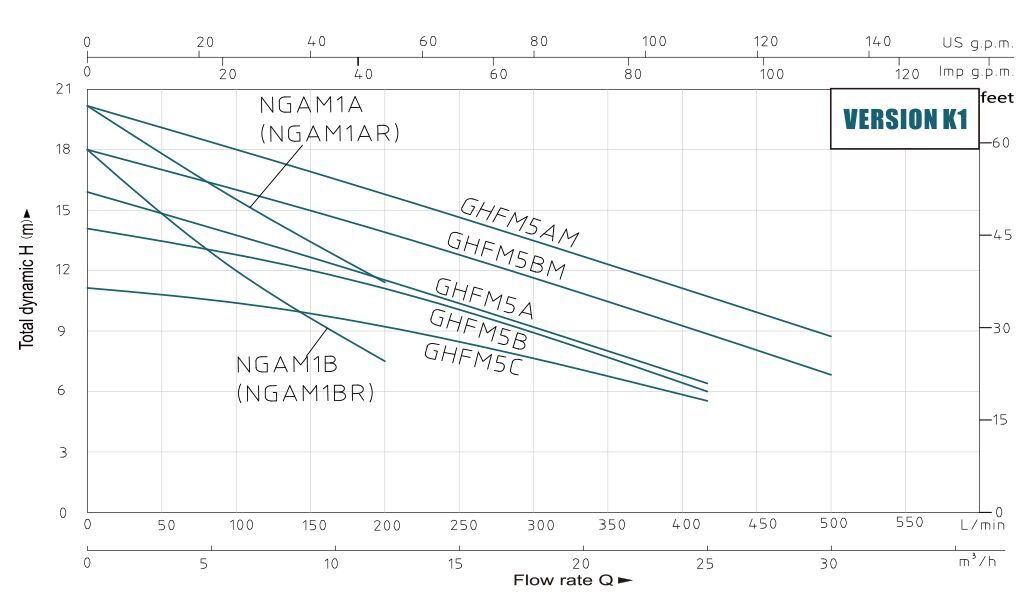

Flow rate up to 600L/min (30 m³/h)

Head up to 20 m

Application Limits

Manometric suction lift up to 7 m
Liquid temperature up to +40℃
Ambient temperature up to +40℃

Construction

Pump Body: Cast iron
Impeller: Brass with centrifugal radial flow type.
Motor Shaft: 304 stainless steel shaft. Mechanical Seal: Ceramic - graphite.
Electric Motor: GHFm:Single-phase 230V-50Hz with
condenser and thermal overload protector built into the
copper winding.GHF:three-phase 380/400V-50Hz.
Insulation: Class B.
Protection: IP 44.
